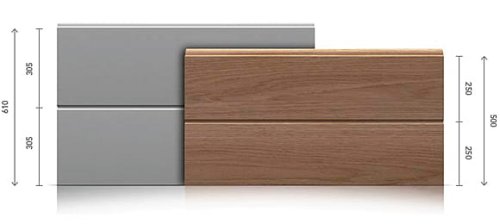

Insulated panels for sectional doors - residential - Middle grove / ribbed
Description
Sectional door panel used for garrage door production dedicated to residential buildings.
Thickness of polyurethane core insulation prevent cold bridge occurrence.
Technical data
Core thickness [mm] | 40 |
Weight [kg] | 5,33 / 6,17 |
Heating value [W/m2K] | 0,51 |
Core density [kg/m3] | 35/40 |
Max length [m] | 13500 |
Width - module [mm] | 500 / 610 |
Type/ thickness of external finishing / [mm] | Coated steel thickness 0,5 mm |
Profiling of external | Middle grove |
Type/ thickness of internal finishing / [mm] | Coated steel thickness 0,5 mm |
Profiling of internal | Ribbed |
